PLC Controlled Hydraulic Cutting Roll Forming Machine for Corrugated Roofing Sheets at 8-12m/min

Model Number : CHBEST-836

Brand Name : CHBEST

MOQ : 1set

Delivery Time : 20-35days

Warranty : 2 year

Price : USD+8000+SET

Speed : 8-12m/min

Control System : PLC

Certification : CE.ISO

Place of Origin : China, Hebei

Payment Terms : T/T,L/C

Color : As yourrequire

Shaft Material : 45# steel

Supply Ability : 15sets/month

Name : Micro Wave Steel Profile Corrugated Roofing Sheet Making Roll Forming Machine

Packaging Details : Standard

Contact Now

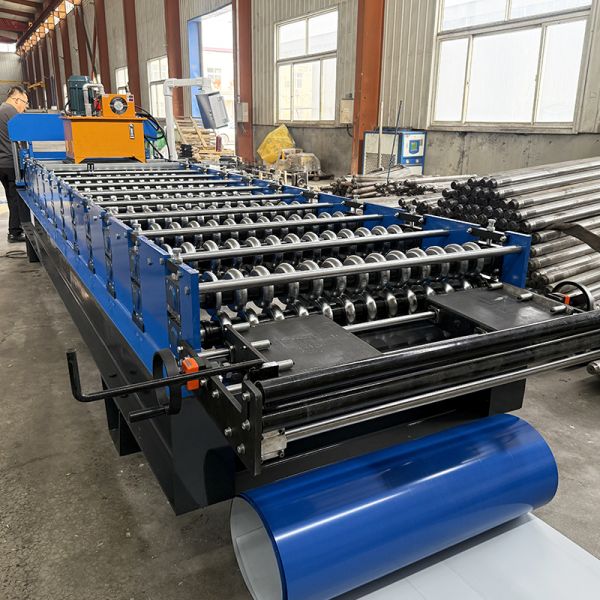

Micro Wave Steel Profile Corrugated Roofing Sheet Making Roll Forming Machine

This advanced roll forming machine is designed for producing micro wave steel profile corrugated roofing sheets with precision and efficiency.

PLC Controlled Hydraulic Cutting Roll Forming Machine for Corrugated Roofing Sheets at 8-12m/min
Machine Components
No. Name Quantity
1.De-coiler1 Set
2.Roll Forming Machine1 Set
3.Pressing Device1 Set
4.Hydraulic Cutting Device1 Set
5.PLC Control Box1 Set
6.Hydraulic Pump1 Set
7.Stacker1 Set
Technical Specifications
Item Name Description
1DecoilerCapacity: 5 tons
2MaterialSteel Coil
3Thickness0.6-2.5mm
4TransmissionChain/Gear/Gearbox
5Speed10-15m/min
6RollerSteel with quenched treatment, chromed on the surface
7ShaftSteel with tempering treatment
8Cutting typeHydraulic cutting
9Cutting materialCr12 with quenched treatment Hardness 58°-62°
10WeldingAutomatic spot welding
11Control systemPLC
12Electric brandDelta, Schneider
13Voltage380V, 50HZ, 3PH (or as customers' request)
Working Process
PLC Controlled Hydraulic Cutting Roll Forming Machine for Corrugated Roofing Sheets at 8-12m/min
Decoiler → Feeding → Roll Forming → Cut to Length → Output Table
Packing Details
  • 40 GP container; main machine naked and fastened with iron wire in the container
  • All components fixed by steel wire with container
  • Electric devices packed with wooden box for standard export packing
  • Rollers painted with oil and packed with plastic film
Company Profile

Cangzhou Best Machinery Manufacturing Co., LTD specializes in the manufacture of high-end cold bending forming equipment. With over 20 years of engineering experience, we provide professional technical guidance, custom design and manufacturing, and complete installation, production, and commissioning services.

After-Sales Service

For visiting customers: We provide face-to-face installation training and worker/technician training.

For remote customers: We supply comprehensive user manuals and instructional videos for installation and operation.
