Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

Name: Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine
Brand: CHBEST
Price: 1 USD

Quality Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine for sale

Supply Ability : 20 sets/month

MOQ : 1 set

Machine speed : 4-6m/min

Delivery Time : 20-30 days

Packaging Details : plastic film for naked machine

Product name : Galvanized Steel Round Shape Water Tube Profile Making Roll Forming Machine

Place of Origin : China Hebei

Control system : PLC

Brand Name : CHBEST

Model Number : XY80

Material thickness : 0.3-0.8mm

Certification : CE/BV/SGS

Warranty : 2 years

Driven system : Chain or gear box

Contact Now

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine

This advanced roll forming machine is designed for precision manufacturing of square shape seaming profiles from galvanized steel, aluminum, and sheet materials.

Technical Specifications

Raw Material Compatibility	Sheet, galvanized steel sheet, aluminum sheet
Material Thickness	1mm
Roller Material	High grade NO. 45 forged steel with 0.05mm hard chrome plating
Shaft Material	High grade NO. 45 carbon wrought steel
Cutting Blade	Cr12 mould steel with quenched treatment
Shaft Diameter	70 mm
Forming Steps	16 rows
Productivity	12 m/min
Hydraulic Station Power	22 KW
Hydraulic Pressure	10-12MPa
Control System	Famous PLC computer control
Cutting Table Material	Cr12 mould steel with quenched treatment
Machine Dimensions	7500mm × 1150mm × 1510mm
Hydraulic Oil	40# hydraulic oil
Electrical Requirements	380V 50 Hz 3 Phase or as required

Manual Decoiler Specifications

Dimensions	1700mm × 1000mm × 800mm
Feeding Width	500mm
Capacity	3 Ton
Expand & Fight Range	420mm - 510mm
Expand & Fight Mode	Inner expand and fight by manual
Feeding Method	Manual

Forming Section Details

Profile Steel Thickness	0.3-0.8 mm carbon steel and stainless steel
Main Motor Power	2 × 5.5 KW, AC motor, side motor to save space (Brand: Guomao)
Voltage/Frequency/Phase	380V, 50Hz, 3Phase (customizable)
Roll Stations	15 stations + 1 rectify station
Roller Material	SAE1045, hardness and chrome plated surface
Shaft Diameter	65 mm material: SAE1045
Forming Speed	0-18 m/min
Transmission	Chain, 1.0 inch double line

Hydraulic Station

Hydraulic Power	5.5kW
Working Pressure	12Mpa adjustable
Solenoid Valve	1 group
Hydraulic Oil	46# hydraulic oil
Color	Blue (customizable)

Control System Features

Programmable setting of profile length and quantity
Automatic equipment stopping after completion of cutting programme
Operating system languages: English and Chinese
Computer-controlled length & quantity with automatic cutting
PLC brand:
Frequency converter brand: Yaskawa (quantity: 1)
Touch screen: Taiwan Weinview

Packaging & Shipping

Packaging: Main machine is nude; computer control box packed by carton box

Transportation: Requires one 40-foot container

Business Terms

Payment Terms	30% deposit by T/T in advance, 70% balance after inspection confirmation before shipment
Delivery Time	Within 50 days after receiving deposit

Service & Warranty

24 months comprehensive warranty
Free replacement of parts damaged due to quality issues within first two years
Technical guidance provided throughout machine lifetime
Overseas services available (costs incurred paid by buyers)

Product Tags:

galvanized steel seaming roll forming machine

PLC control square roll forming machine

down spout roll forming machine with warranty

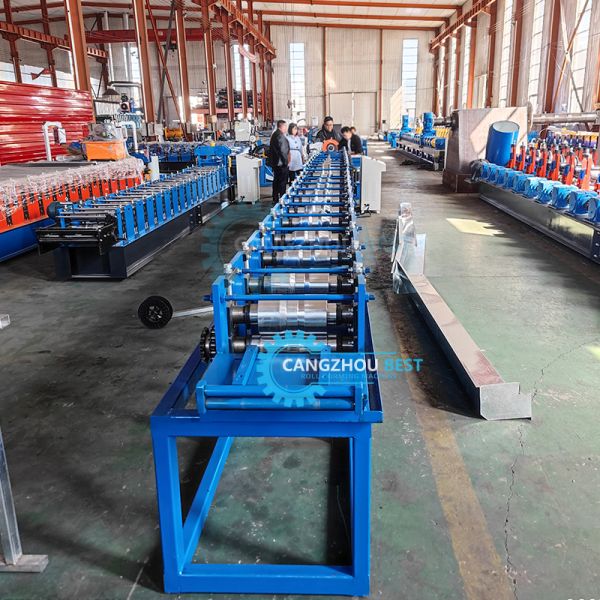

Galvanized Steel PLC Control Square Shape Seaming Roll Forming Machine Images
