Double Line Customized U Profile Stud Track Roll Forming Machine For Spain

Name: Double Line Customized U Profile Stud Track Roll Forming Machine For Spain
Brand: CHBEST
Price: 1 USD

Brand Name : CHBEST

Model Number : XY26

Certification : CE/BV/SGS

Place of Origin : China Hebei

MOQ : 1 set

Supply Ability : 20 sets/month

Delivery Time : 30-40 days

Packaging Details : plastic film for naked machine

Product name : Double Line Customzied U Profile Stud&Track Roll Forming Machine for Spain

Cutting type : flying cutter

Warranty : 2 years

Lifetime : 10years

Roller material : Cr12

Shaft diameter : 70mm

Contact Now

Double Line Customzied U Profile Stud&Track Roll Forming Machine for Spain

Working flow

Decoiler------feeding------roll forming---------punching-------cut to length-----output table

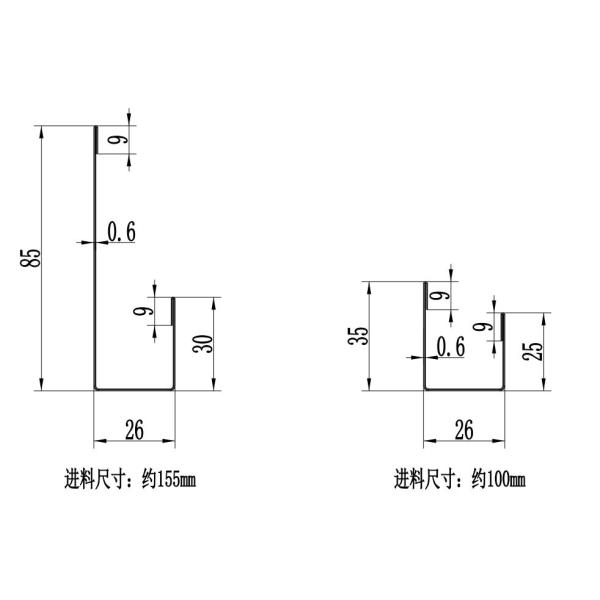

Profile Drawing

Double Line Customized U Profile Stud Track Roll Forming Machine For Spain

Machine Components

De-coiler------------------------------------------1set

Forming machine--------------------------------1set

Cutting device -----------------------------------1set

PLC control box ---------------------------------1set

Hydraulic pump station-------------------------1set

Production support table-----------------------1set

Parameter

3T manual decoiler:

Dimensions: 1700mm1000mm800mm
Width of feeding: 500mm
Capability: 3 Ton
Bound of expand &fight: 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

Forming section

Profile steel thickness 1.5mm carbon steel and stainless steel
Main motor power: 4KW, AC motor, side motor to save space (Brand: Guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:11stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 0-15m/min
Transmission: by chain, 1.0inch double line

Post cutting :

Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm

Hydraulic station:

Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

Control system

1) Programmable setting of profile length and quantity
2) Automatic stopping of the equipment after completion of the cutting programme.

3) Operating system language: English and Chinese

4) Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5) PLC brand:

Working conditions
1. Machine size	10m x 1.2m (L XW)
2. Working size	20m x 2.5m (LXW)
3. Power supply	8.5kw
4. Frequency	50-60HZ
5. Wires/cables	4-6mm²(length according to workshop)
6. Labor cost	2 workers
7. Tools	Spanners and screwdriver
8. Lift device	3-5t forklift or crane

Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.
Selling Service :
1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
